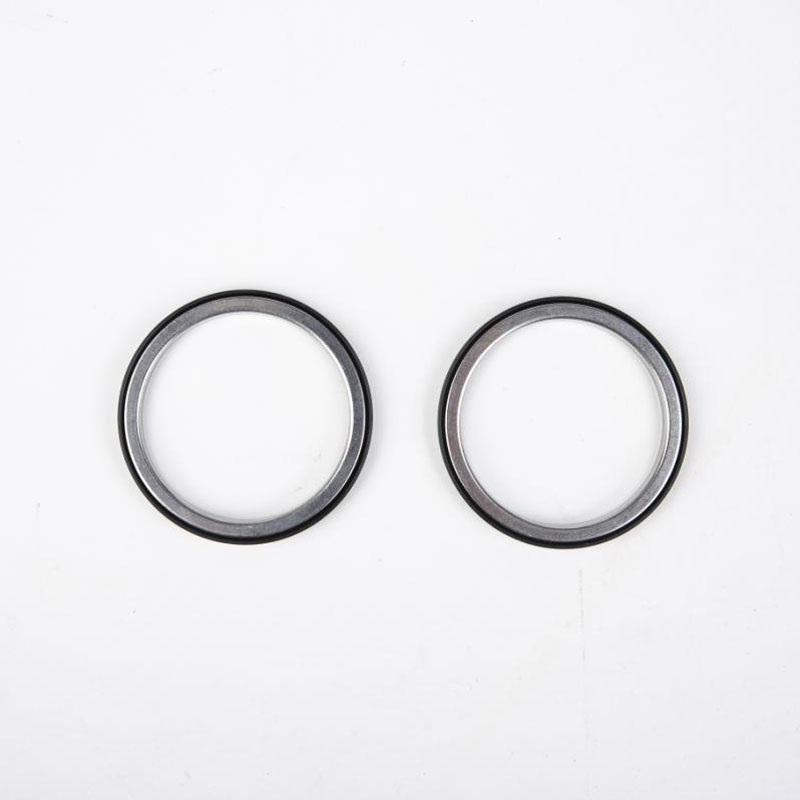

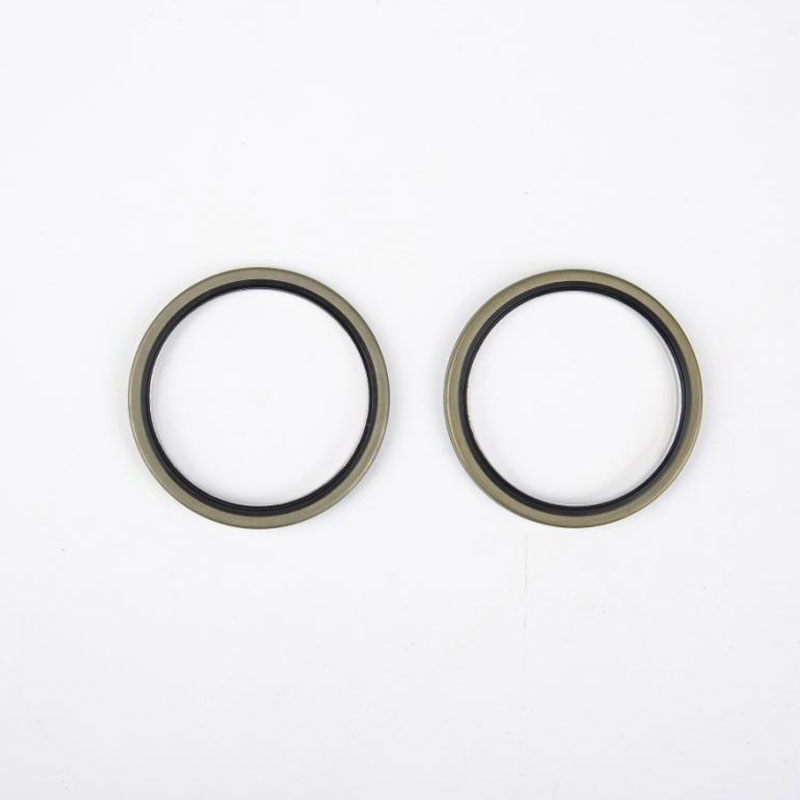

Sealing Ring Assembly

Product name

Sealing Ring Assembly

Size

75(OD)*59.3(ID)*3.2(Thickness)

Material

N7016+SPCC+SUS304

Structure

The Sealing ring assembly is a rubber lip seal and a sealing ring.

The other is SUS304 stainless steel skeleton

Package

Carton with wood tray

Supply Ability

50000 Pieces per month

Delivery time

 3-7 working days for products in the stock; 15-25 working days for production line products; 40-45 working days for a customized product.

Payment

T/T, Paypal

  • Q: Do you check the finished product?

A: Yes, every step of production and finished products will be checked by quality control department before shipment.

  • Q: Can the minimum quantity of samples and delivery time be negotiated?

A: Yes. The quantity lower than the minimum order quantity can be negotiated under certain conditions; for special samples, we may need a longer delivery time. Please let us know your specifications and problems and we will try to come up with appropriate solutions

Product Description

The sealing ring assembly includes a support ring, a pressure ring, and an annular seal arranged between the support ring and the pressure ring, wherein the support ring and the pressure ring can be connected in an axially floating manner, and the annular seal includes at least one set of The sealing ring is arranged on one shaft end of the pressing ring and pressed against the shaft end surface of the support ring in the axial direction.



Advantages

The traditional sealing ring does not have its own protection and ensures the complete disassembly structure. The assembly and disassembly process is not only difficult but also there is a risk of seal failure due to damage to the seal ring during the installation and disassembly process. Ring fragments fall into the medium, creating a risk of medium contamination.

However, Our sealing ring assembly can be integrally installed into the device to be sealed or can be removed from the sealing device as a whole, which ensures the integrity of the sealing ring during installation and removal, thereby ensuring the reliability of sealing, and the removal medium will not Contaminated and easy to assemble and disassemble.







Related Products



  • Bearing Sealing Ring

    Bearing Sealing Ring

  • Wheel Hub Sealing Ring

    Wheel Hub Sealing Ring

  • Rubber Sealing Ring

    Rubber Sealing Ring

  • Sealing Ring Assembly

    Sealing Ring Assembly

  • ABS sealing ring for bearing

    ABS sealing ring for bearing

  • Repair sealing ring

    Repair sealing ring

About Your Company

A Mature Factory You Can Count On

We are professional China Sealing Ring Assembly Manufacturers and OEM Sealing Ring Assembly factory. Our goal is to provide customized solutions for the market and customers, whether individual products or complete sets of equipment. Although the market, application and customers are different, Hananye has a unique concept to guide customers' success. We will respond patiently and carefully to any inquiries and feedback from customers. For any inquiry from customers, we will provide professional and reasonable quotation as soon as possible. For any new products from customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure products.

Hananye is a professional sealing ring manufacturer and supplier, our sealing products mainly include bearing sealing rings; wheel Hub sealing rings; rubber sealing rings; sealing ring assembly; ABS sealing rings and repair sealing rings. Our sealing rings can prevent sediment, dust, moisture, etc. from entering the bearing from the outside, and limit the leakage of lubricating oil in the bearing. And it has good sealing performance, and can automatically improve sealing performance with the increase of pressure; high-temperature resistance; strong corrosion resistance, not easy to age, long working life and good wear resistance.

News



Honor



  • honor
  • honor
  • honor
  • honor
  • honor
  • honor
  • honor

Industry Knowledge



Sealing Ring Assembly
A sealing ring assembly typically consists of a ring-shaped component designed to create a seal between two mating surfaces. The assembly may also include other components such as backup rings, O-rings, and retaining rings.
The sealing ring assembly is often used in hydraulic and pneumatic systems, as well as in other mechanical applications where a tight seal is required. The assembly is typically made of materials such as rubber, silicone, or other elastomers that are able to deform and conform to the mating surfaces, creating a leak-proof seal.
To install a sealing ring assembly, the mating surfaces must be clean and free of debris or other contaminants that could compromise the seal. The assembly is then placed in position between the surfaces, and any necessary retaining rings or backup rings are installed to ensure that the assembly remains in place and maintains the desired level of compression.
Product highlights for seal ring assemblies
Here are some product highlights for sealing ring assemblies:
Material options: Sealing ring assemblies can be made from a variety of materials, including rubber, silicone, Viton, Teflon, and other elastomers. The choice of material will depend on the specific application requirements, such as temperature, pressure, and chemical compatibility.
Customization: Sealing ring assemblies can be customized to meet specific application needs. Customization options can include size, shape, and material selection.
Multiple components: Sealing ring assemblies may include multiple components such as O-rings, backup rings, and retaining rings. This allows for a complete sealing solution that can handle a variety of pressures and temperatures.
High pressure capabilities: Some sealing ring assemblies are designed to withstand high pressures, making them suitable for use in hydraulic and pneumatic systems.
Easy installation: Sealing ring assemblies are designed for easy installation, reducing installation time and increasing productivity.
Cost-effective: Sealing ring assemblies are a cost-effective sealing solution, providing a reliable seal at a lower cost than other sealing options.
High reliability: Sealing ring assemblies are known for their high reliability and long service life, making them a popular choice for critical applications where leakage cannot be tolerated.
What are the types of sealing ring assembly
Sealing ring assemblies are used in a variety of applications to prevent leakage of fluids or gases. There are several types of sealing ring assemblies, including:
O-Ring Assembly: An O-ring is a circular sealing ring that is used to seal two mating surfaces. O-ring assemblies are commonly used in hydraulic systems, pneumatic systems, and engines.
Gasket Assembly: A gasket is a flat sealing ring that is used to seal two flat mating surfaces. Gasket assemblies are commonly used in engine cylinder heads, exhaust systems, and fluid piping systems.
Mechanical Seal Assembly: A mechanical seal is a sealing device that is used to seal rotating shafts in machines. Mechanical seal assemblies are commonly used in pumps, compressors, and mixers.
V-Ring Assembly: A V-ring is a sealing ring with a V-shaped cross-section that is used to seal shafts in dynamic applications. V-ring assemblies are commonly used in pumps, mixers, and other rotating equipment.
Piston Seal Assembly: A piston seal is a sealing ring that is used to seal the gap between a piston and cylinder wall in hydraulic or pneumatic systems. Piston seal assemblies are commonly used in hydraulic cylinders and pneumatic cylinders.
